Do not make these mistakes when choosing and installing TV mounts!

The impact of proper installation of a TV mount on installation safety

Mounting a television receiver on a vertical surface is often perceived as a simple craft task. In reality, this process requires maintaining rigorous engineering precision and knowledge of the laws of mechanics. Proper installation of the mounting system determines not only the aesthetics of the architectural space, but above all structural safety. Mistakes made at the execution stage may result in irreversible damage to electronic equipment, compromise the statics of the wall, and in extreme cases pose a real threat to users' health.

Mistake #1: Ignoring technical specifications – the VESA standard and the weight of the receiver

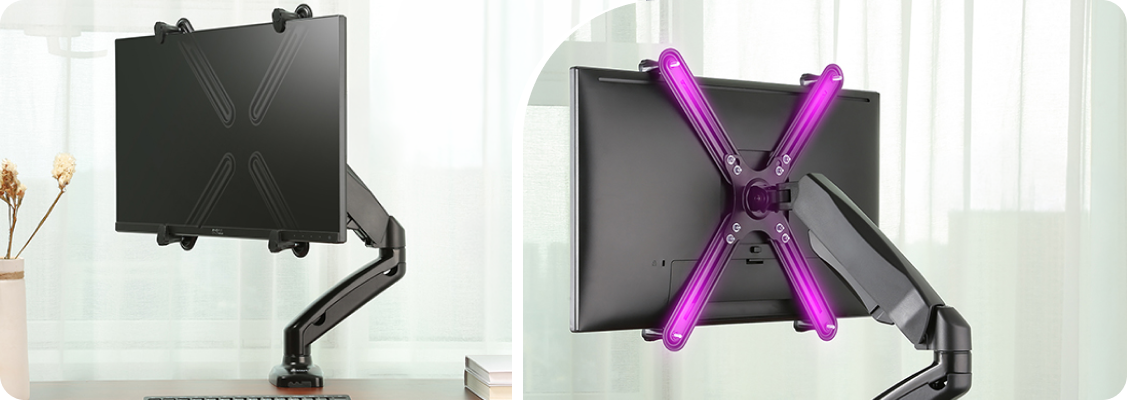

The foundation of safe wall mounting is strict compliance with the technical specifications provided by device manufacturers. The key structural parameter is the VESA standard (Video Electronics Standards Association), which defines the exact spacing of the mounting holes located on the rear housing of the screen. The compatibility of this standard with the mounting plate of the bracket is the basic guarantee of proper distribution of static forces. Ignoring verification of the VESA standard leads to a lack of mechanical compatibility or forces the use of dangerous, makeshift adaptations, which drastically reduces the stability of the entire structure.

An equally important variable is the correlation between the weight of the TV and the declared load-bearing limit of the supporting element. From the point of view of materials engineering, the mounting structure should have a constant strength reserve, optimally from 20% to 30% above the actual load weight. This trivial margin protects the system against material fatigue, dynamic stresses, and micro-vibrations of the substrate. Exceeding permissible weight standards results in plastic deformation of steel, stripping of threads in the TV housing, and consequently complete destruction of the supporting structure. Proper technical assessment of input parameters makes it possible to eliminate the most serious risks of equipment failure.

Mistake #2: Incorrect selection of the mount structure for the characteristics and needs of the space

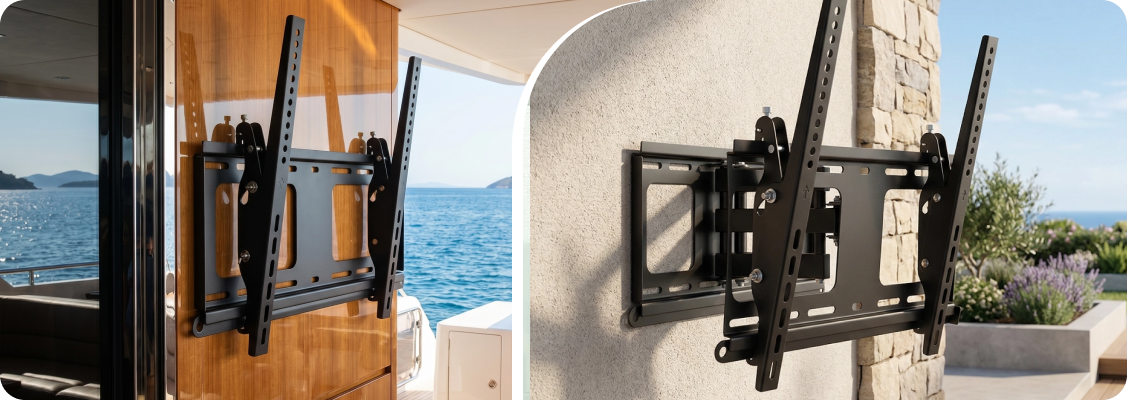

Incorrect functional assessment of the space and user needs often results in the choice of a suboptimal type of supporting structure. The modern AV installation systems market offers a variety of structural solutions, each of which responds to specific spatial requirements. Fixed mounts (low-profile) are dedicated to minimalist arrangements in which the screen is intended to be as close as possible to the wall, and the user's line of sight runs perpendicular to the plane of the matrix. Tilting systems, in turn, introduce the possibility of adjustment in the vertical plane, which proves crucial when eliminating light reflections or in situations where the mounting point is located above eye level.

The highest degree of spatial freedom is provided by full-motion mounts (articulated arms), enabling smooth changes in screen orientation both vertically and horizontally. These solutions work perfectly in multi-zone rooms and open-plan living rooms. Ceiling mounts constitute a specialized branch, being the standard in commercial facilities, lecture halls, and conference centers. Underestimating the role of the mobility of the installation arm directly affects usage ergonomics, forcing an unnatural body position and generating fatigue of the eyesight and the cervical section of the spine.

Mistake #3: Failing to adapt fastening elements to the type of structural substrate

One of the most serious shortcomings during installation work is ignoring the physical parameters of the wall that serves as the base for the AV system. The strength of the steel mount structure itself becomes useless if the construction fasteners are not precisely matched to the material structure of the vertical partition. It is the anchoring zone that transfers the full static and lever loads resulting from the reach of the mounting arms. Each construction material is characterized by different density and shear resistance, which determines the mounting technology.

Walls made of monolithic concrete, silicate blocks, or solid ceramic brick are characterized by the highest stability. They allow the use of traditional, high-quality expansion plugs, provided that the appropriate drilling depth is maintained and the hole is thoroughly cleaned of dust. A diametrically different engineering approach is required when mounting on plasterboard partitions. These structures are characterized by low resistance to point loads. The correct installation process in such a substrate requires locating the internal profiled frame (steel or wooden) using detectors and anchoring directly into the building's structural elements. If access to the profiles is not available, it becomes necessary to use specialized “Molly” type steel anchors or advanced toggle expansion systems, while simultaneously limiting the maximum permissible bending moment. Difficult substrates, such as aerated concrete, porous ceramics, or hollow brick, require the implementation of chemical anchoring technology (perforated sleeves with resin compound), which permanently bonds the connector element with the material structure.

Ensuring a stable mechanical connection between the mount and the building structure is an absolute priority. A modern design approach focuses on uncompromising safety, eliminating the risk of destabilizing the installation structure. The use of proven engineering solutions makes it possible to achieve durability resistant to long-term loads and external factors.

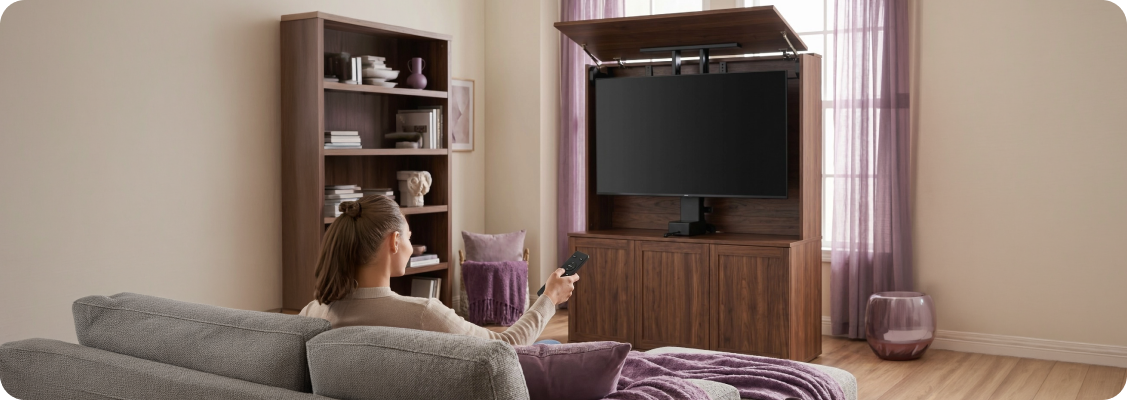

Mistake #4: Ignoring ergonomics and the aesthetics of cable management

After completing mechanical safety procedures, attention should be focused on the ergonomic aspects of positioning the image plane. Incorrect placement of the receiver negatively affects the user's musculoskeletal system. According to occupational medicine guidelines, the central point of the screen should be at the eye line of a person sitting in a natural position, which minimizes the load on the cervical spine. In the case of modern multifunctional workstations that combine home space with professional work at adjustable desks, it becomes necessary to use mounts with a wide range of axial adjustment, enabling immediate adaptation of the screen position geometry to the variable height of the workstation.

An equally important component of professional installation is cable integration. Freely hanging power and signal cables lower the aesthetic standard of the interior and create a risk of accidental damage to the TV's connection ports. Advanced engineering mounting systems have integrated cable channels, allowing power lines to be routed discreetly and safely along the structural arm. In architecturally advanced projects, it is recommended to use wall masking systems, dedicated concealed conduits, or external masking profiles with a high surface finish class.

Mistake #5: Haste and lack of measurement accuracy during the installation procedure

All work related to the installation of wall-mounted systems excludes haste and lack of measurement accuracy. The margin of error when leveling the main plates of mounts is zero – a minimal deviation from the horizontal axis of a few millimeters will be multiplied at the edges of a large-diagonal receiver, leading to visual asymmetry and uneven loading of anchoring points. Overlooking accuracy requires the use of professional measuring equipment, including laser levels, electronic detectors for electrical and sanitary installation profiles, and tools with precise control of screw tightening torque.

Strict adherence to the mounting sequence described in the technical documentation is an absolute obligation of the installer. Performing preliminary drilling of a pilot hole with a diameter precisely matched to the specification of the expansion plug sleeve determines the final load-bearing capacity of the entire system. Common shortcomings, such as using worn drill bits, enlarging holes in soft substrates, or failing to tighten the elements locking the mount arm, are a direct source of operational failures.

Mistake #6: Ignoring international certificates and product safety standards

Modern engineering thought is based on the assumption that high functional usability must be absolutely integrated with active safety systems. Choosing mounting components without official approvals from independent research institutes constitutes a high technical risk. Products dedicated to supporting advanced image display systems are subjected to complex destructive, fatigue, and load testing procedures, which guarantees the stability of mechanical parameters over a long time horizon.

The key indicator of the quality of steel products is the presence of the CE conformity mark, confirming compliance with the essential requirements of European Union directives. In addition, certification by independent bodies, such as the German TÜV USA/GS association or American UL laboratories, is a highly desirable parameter. These certificates constitute objective proof that the supporting structure has successfully passed static tests under loads several times higher than the declared usable load capacity. Choosing solutions that meet these stringent criteria guarantees the preservation of the full technical properties of the material, regardless of the intensity of mechanical use.

Mistake #7: Disregarding official technical documentation and engineering support

Even many years of experience in finishing work does not exempt one from the obligation to thoroughly analyze the documentation attached to a specific model of mounting system. Each mechanical structure has unique design features, such as a specific distribution of support points, a dedicated sequence for applying spacer washers, or precisely specified tightening force for articulated connections. Ignoring the manufacturer's engineering guidelines and carrying out work based on general execution habits is a common source of hidden installation defects.

Dedicated technical guides and engineering support provided by professional AV solution suppliers constitute a key tool in the process of eliminating execution errors. Consulting the technical specification allows optimal resolution of problems related to unusual room geometry or low load-bearing capacity of building partitions. Compliance with technical procedures is the only effective way to create a wall installation with the highest degree of stability, corresponding to rigorous architectural safety standards.

Proper wall installation as a guarantee of audio-video system stability

The safety of valuable electronic equipment and the protection of household members' health depend directly on rigorously eliminating typical mounting errors. Compliance with the VESA specification, proper selection of anchoring technology for the building structure of the wall, and maintaining absolute geometric precision during leveling are factors that determine many years of trouble-free operation.

The choice of technologically advanced and fully certified installation components constitutes the foundation of a modern, safe, and ergonomic multimedia station. A professional design approach, based on objective mechanical criteria and proven strength standards, guarantees optimal functionality of the structure and complete peace of mind for users throughout the entire period of use of the AV system.
